商品描述
说明:Description :

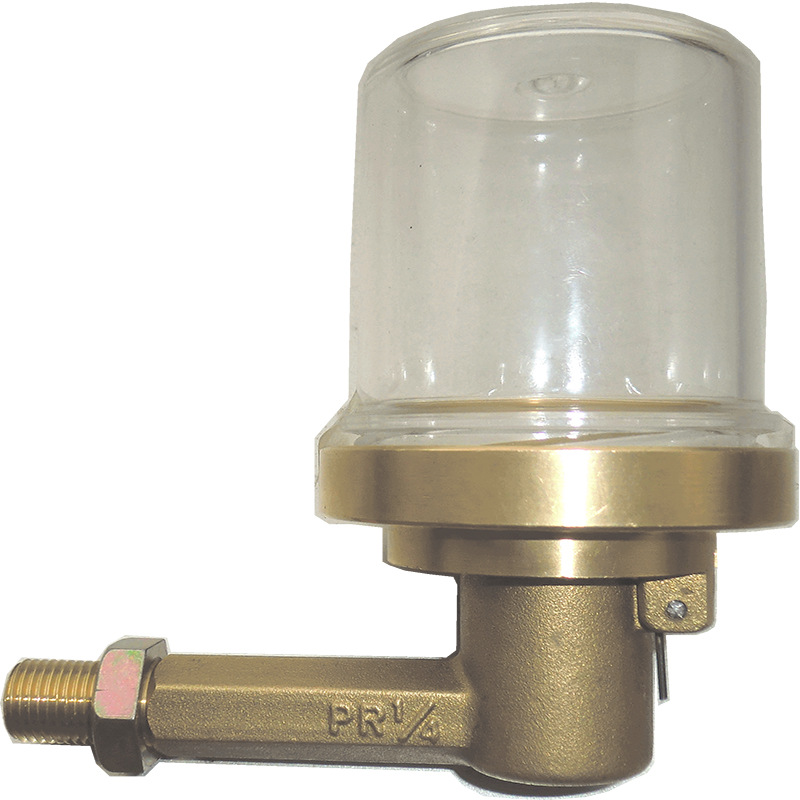

HY-Ⅰ型恒位油杯是一种恒油位的油位计。恒位油杯的作用是使轴承箱内的润滑油保持在设计的恒定位置。同时还起到一个视窗作用,操作者可根据油杯内的油位来决定是否添加润滑油。
Type-I is a constant level oil level indicator. It can keep the level of lubricating in the bearing box in the designed position. It also is a window, operator can decide to add lubrication according to the level of oil cup.
油杯通过杯座与轴承箱油室相连,油杯与杯座通过铰链联接。这样二者形成一个连通器,恒位油杯在工作时,操作者应通过轴承箱的排气孔向箱体内注油。当润滑油从杯座内的孔流出时,将加满油的油杯扣在杯座上。通过油杯向箱体内注油,直至油杯内的油位不再下降为止,并保持在整个油杯的2/3处。由于连通器的原理,油杯内气体压力小于外界大气压力,故油杯内的润滑油能保持一定高度的液位。
Oil cup connect to the bearing box with cup seat, cup joint to the seat, they are a communicating vessels. When it works, operator inject the oil through vent hose on the bearing box, put the full cup on when the oil outflow, oil will inject from cup, till the level stable on 2/3 of the cup. (For the principle of communicating vessels, oil in the cup can keep stated height).
恒位油杯在补油状态时,轴承箱体内的润滑油由于各种原因的损耗,箱体内油位下降,因连通器原理,油杯斜面处的油位降低到工作油位点以下,外界气体在大气压力的作用下通过斜面的上端进入油杯。导致油杯内油液的压力平衡被破坏,润滑油从油杯内流出并注入轴承箱体。直到润滑油液面恢复到工作油位时,补油结束。
For any kind of reason, the oil in the bearing box will be consumed, the oil level in the box will fall down, level on the incline of the inner hole will fall down, outside air will enter to the cup through incline, lubricant inject to the bearing box from oil cup till the normal level.
规格参数:material and parameter:
油杯材料
Oil cup
杯座材料
Cup seat
密封材料
seal
容量
Capacity
连接方式
connection
安装方式
Mount mode
透明塑料
PVC
不锈钢 stainless steel
丁晴橡胶
nitrile rubber
125mL
NPT 1/4〞3/8〞1/2〞3/4〞
水平安装
horizonta
